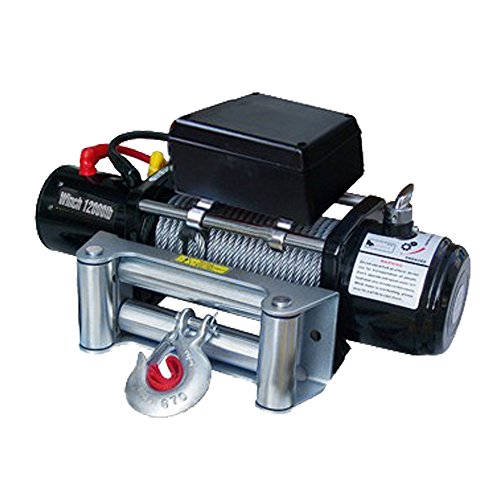

Yescom 12000 lb 12V 6.6 Recovery Winch Wireless Remote for Trailer Truck SUV Jeep Electric

Features:

– 12,000LBS (single line rated pull) Electric Winch
– Power IN and OUT through a remote switch with 12ft lead or wireless remote control
– Automatic braking in the drum will lock the wire rope and stop pulling when you release button on the switch

Specifications:

– Single Line Rated Pull: 12000 lbs (5443 kg)
– Motor: 6.6hp/4.8kw (12V), Series Wound
– Gear Reduction Ratio: 195.8:1
– Gear Train: 3 Stage Planetary
– Fairlead: 4-Way Roller Fairlead
– Clutch: Sliding Ring Gear
– Braking Action: Two way braking action in the drum
– Remote Control: Wired & Wireless Optional
– Control: remote switch with 12ft (370 cm) lead
– Drum Size (Dia. x L): 2 1/2″ x 8 13/16″ (64 x 224 mm)
– Cable Size (Dia. x L): 3/8″ x 92′ (9.1mm x 28m)
– Battery Recommended: 650CCA minimum for winching
– Battery Lead: 2 gauge, 72″ (183 cm)
– Overall Dimension (LxWxH): 21 1/8″ x 6 5/16″ x 8 9/16″ (537 x 160 x 218 mm)
– Mounting Bolt Pattern (LxW): 10″ x 4 1/2″ (254 x 114.3 mm)
– Weight: 79.2 lbs (36 kg)

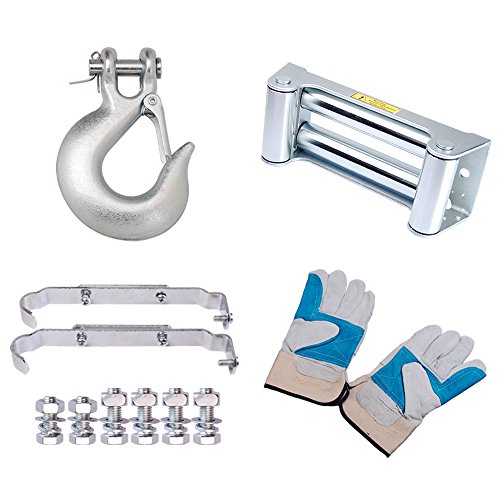

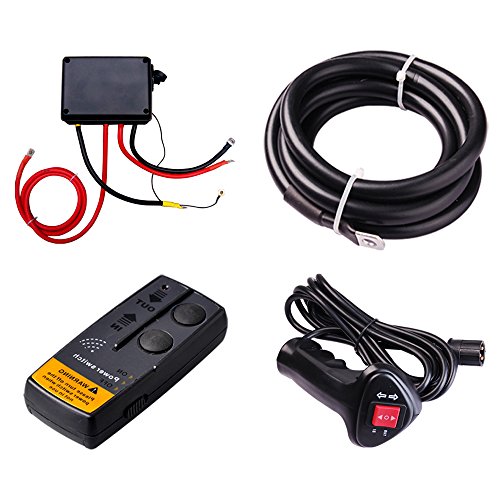

Package Contents:

– 1x 12000lbs Winch
– 1x Solenoid Box Assembly
– 1x Roller Fairlead
– 1x Remote Switch with 12ft Lead
– 1x Wireless Remote Control
– 1x Hook
– 1x Safety Pull Strap
– 1x Battery Lead
– 1x Set of Fixing Accessories
– 1x Pair of Safety Gloves (Free Gift)
– 1x Manual

Notice:

– Mounting plate is not included. You need a suitable winch mounting plate to hold your winch and fairlead before installing the winch onto your vehicle.(The type of mounting plate should refer to if your vehicle equipped with a fender guard or not.)
– Wireless remote control battery is not included.
– Do not use winch as a hoist, do not use for transportation of people.
– Do not operate and spool under full load over one minute continuously.
– While motor is over heating, please stop for a while to cool down.

Make sure this fitsby entering your model number.
Single Line Rated Pull: 12000 lbs (5443 kg); Motor: 6.6hp/4.8kw (12V); Gear Reduction Ratio: 195.8:1

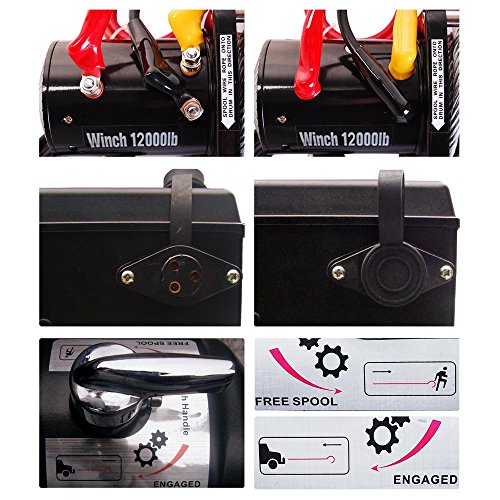

Efficient three-stage planetary gear train helps to offer powerful horsepower; 4-way roller fairlead to guide the rope onto the drum evenly; Free spooling clutch allows the wire rope to be pulled out without using electric power
Automatic braking in the drum will lock the wire rope and stop pulling when you release button on the switch
Power IN and OUT through a remote switch with 12ft lead or wireless remote control
Extra protective casings for connectors, insuring safety and low wear-out; Custom gaskets seal up critical inner components from water and debris infiltration
