WARN 27550 XD9000i 9000-lb Winch

Product Description

Warn Industries XD9000i Winch has pulling capacity rated up to 9,000 pounds. The series-wound, high-speed motor provides fast line speed and strong pulls. Runs cool with low amp draw for long winching duty cycles. Includes 125′ of 5/16″ wire rope. The integrated control box provides excellent protection to electronics. Exclusive brake design provides superior control while winching. Has a durable 3-stage planetary geartrain for smooth, reliable, operation. Chip-resistant, powder-coated finish. This winch is backed by a limited lifetime warranty.

From the Manufacturer

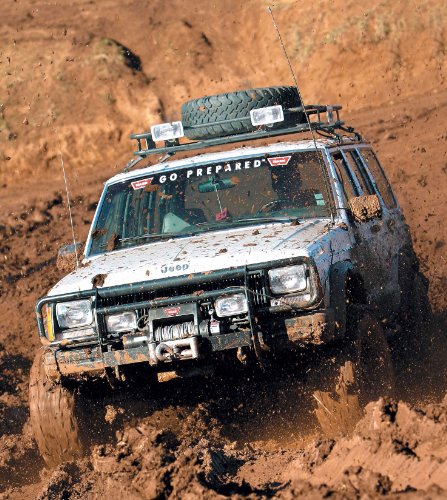

You’ll probably see more XD9000i winches on trail rigs than any other winch. No load line speed of 38-feet per minute and three-stage planetary gearing and the ability to run cool with low amp draw for long winching cycles are just a few reasons why.

SPECIFICATIONS

• Part Number: PN 27550 (12V DC), PN 275502 (12V DC, CE), PN 274022 (24V DC, CE)
• Rated Line Pull: 9000 lbs. (4080 kgs.) single-line
• Motor: 12V 4.6 hp, 24V 2.5 hp, Series WoundTM
• Remote Control: Remote switch, 12′ (3.7m) lead
• Geartrain: 3-Stage Planetary
• Gear Ratio: 156:1
• Lubrication: Aeroshell #17
• Clutch (freespooling): Sliding Ring Gear
• Brake: Automatic Direct Drive Cone
• Drum Diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
• Weight: 85 lbs. (38.5 kgs.)
• Wire Rope: 125′, 5/16″ diameter (38m, 8mm diameter)
• Fairlead: Roller
• Recommended Battery: 650 CCA minimum for winching
• Battery Leads: 2 gauge, 72″ (1.83m)
• Finish: Argent Powder Coat
• Nuts/Bolts: PN 39570
• CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, Manuals, Safety Hook and Thimble.
• Winch Dimensions: 21.8″ L. x 6.3″ D. x 9.94″ H. (553mm L. x 160mm D. x 252mm H.)
• Mounting Bolt Pattern: 10.0″ x 4.5″ (254mm x 114.3mm)

Make sure this fitsby entering your model number.
Features an integrated control box for additional protection to the electrical components
Series-wound, high-speed motor provides fast line speed and strong pulls up to 9,000 pounds
Includes 125′ of 5/16″ wire rope and remote control with 12′ lead
Runs cool with low amp draw for long winching duty cycles
Durable 3-stage planetary geartrain for smooth, reliable, operation
