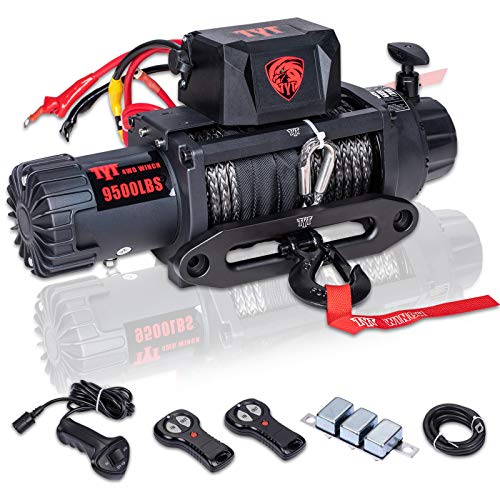

TYT T1 Series Winch 9500 lb. Load Capacity Electric Winch, 12V Winch with Synthetic Rope, Waterproof IP67 Truck Winch with Hawse Fairlead, with 2 Wireless Handheld Remote and Wired Handle Recovery

ITEM:

TYT T1 Series Winch | 9500 lb Advaced Electric Winch | Synthetic Winch Rope | Dual Remote Control

Brand: TYT

Color: Black/Red

Finish:Frosted Black

Type: Electric Winch

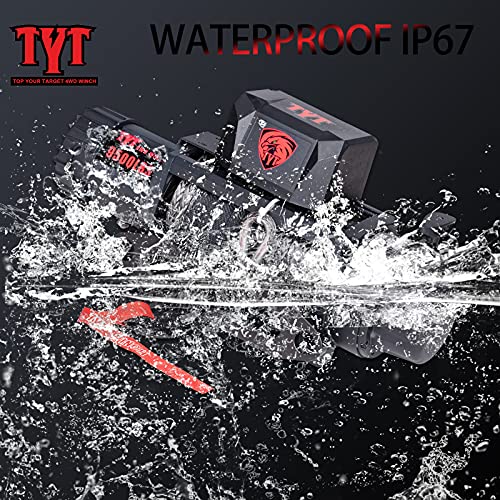

Waterproof: IP67

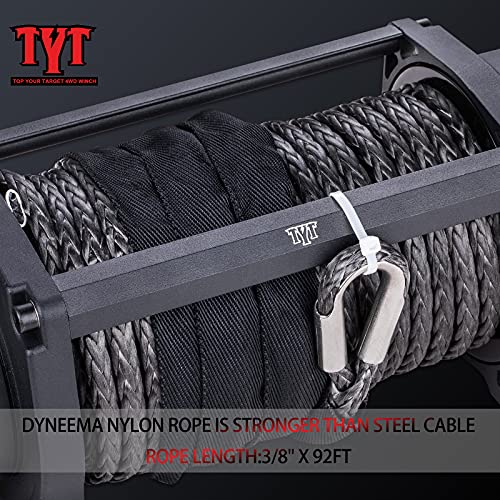

Cable Type: Synthetic Rope(Dyneema)

Synthetic Rope Length: 3/8″ x 92ft

Single Line Rated Pull: 9500lbs(4310 Kg)

Motor: 5.5hp/4.0Kw

Control: Remote Switch

Extra Wireless Remote Switch: Optional

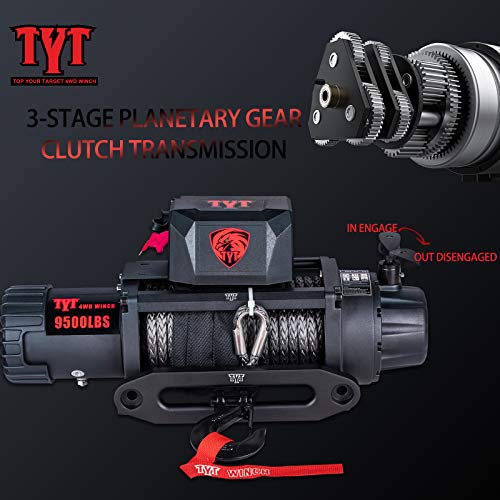

Gear Train: 3 Stage Planetary

Gear Reduction Ratio: 265:1

Braking: Automatic Load-holding Brake

Drum Size: Diameter 2.5”(63.5mm) x length 9.6”(224mm)

Remote Control Switch: Included

Clutch: Sliding Ring Gear

Battery: Recommended: 650 CCA

Net Weight: 28 Kg

Overall Dimension(length x width x height): 21.06″ x 6.3″ x 7.87″

Mounting Bolt Pattern: 10” x 4.5”

Full Load Line Speed: 5.8 ft/min

Fairlead Type: Aluminium Hawse Fairlead

★WARRANTY★

TWO years warranty

★Q&A★

Q:How To Connect The Control Box, The Power Supply And The Winch?

A:Please Check The Operator’s Manual Please Check Pages 11-13 Of The Operation Manual.If Your Operation Manual Is Lost, Please Contact Us Directly,We Will Send The Electronic Version For You.

Q:The Weight Of My Car Is Xxx,Will This Winch Work?

A:When Using a Winch, You Usually Get Stuck In a Quagmire Or Other, In Which Case The Drag Becomes Greater, So You Need Choose a Winch That Is 1.5 Times Heavier Than The Car’s Weight. For Example, If Your Car Is 9500lbs, It Is Better To Use a Winch Over 13000lbs.

Q:Can I Disassemble And Replace This Rope Or Wire By Myself?

A:Yes,You Can Do That.Leather Gloves Must Be Worn While Re-Spooling. Tore-Spool Correctly, It Is Necessary To Keep a Slight Loading On The Cable. Hold The Cable With One Hand And The Remote Control Switch With The Other.

Make sure this fits by entering your model number.

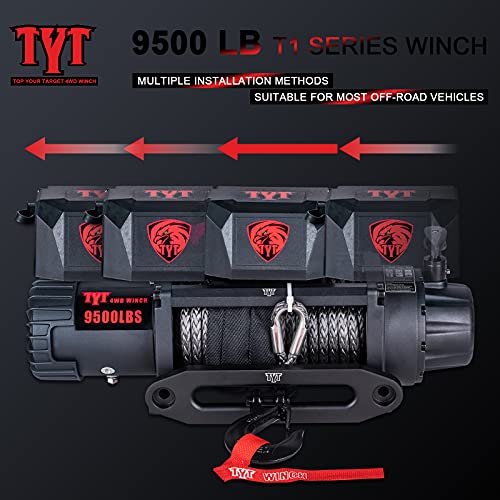

T1 Winch for 9500 lb Winch: Brand new design for TYT T1 Winch, new control box, the reception speed is 20% – 30% faster than the Conventional control box.The unique exterior design is very suitable for your off-road vehicle, making it more beautiful and cool.Fully matte material, synthetic rope(Dyneema) – stronger than steel cable.
9500 lb Winch Overall Dimensions: Winch Size: (L x W x H) 21.06″x6.3″x7.87″; Mounting Bolt Pattern Size: 10.00±0.015″ × 4.50±0.010″ ; Synthetic Rope Size: 3/8″ x 92ft. Please confirm whether the winch is suitable before purchase. And have dual remote control and Overload Protection.

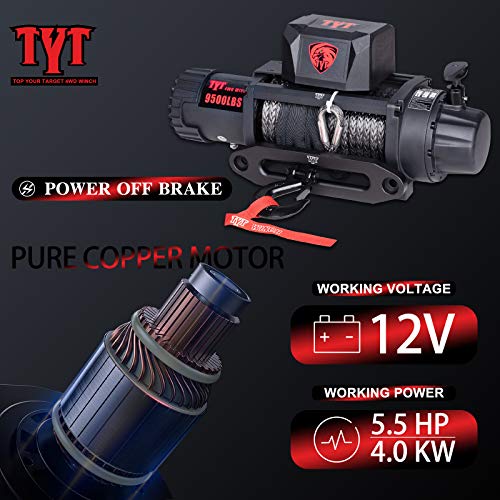

Efficent Precision for T1 Series Winch: High-performance pure copper motor, high-efficiency 5.5HP/4.0 Kw series electric motor, can provides stronger pulling power. The precision 3-stage planetary gear enables the winch to run stably for a long time, and with free spooling clutch gear system.
Advantage Design: Waterproof and sandproof design, the new upgrade 500AMP Solenoid, with high-performance sealing ring, makes you no longer afraid of muddy and rainy weather, let you worry-free. No load traction drag speed is 24.6 ft/min, all load The 9500 lbs drag speed is 6.4 ft/min.
Special Design & Warranty Service: For car, boat, trucks, jeeps, modified vehicles and multi purpose utility trailers. TYT All winch provides 2 years of warranty services and lifetime product technical support. Also, if you encounter any problems, please feel free to contact us, we guarantee that will reply you within 12 hours and solve all the confused.
