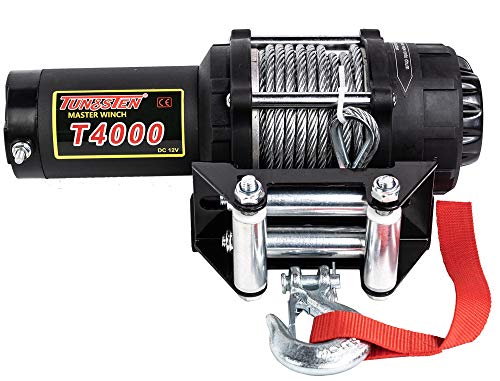

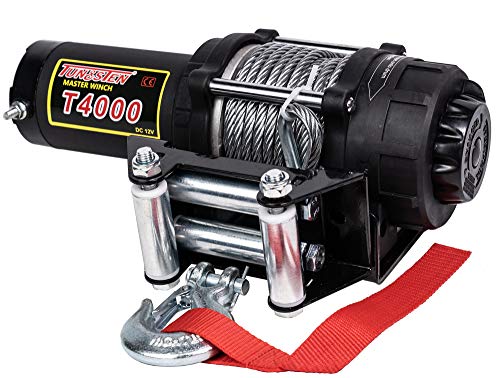

Tungsten4x4 T4000 1.9 HP ATV/UTV Electric Utility Cable Winch with Roll Fairlead, 4000 lbs Capacity

Product Details
The Tungsten4x4 electric winch provides 3000-12000 lb line pull rating for smooth and efficient operation, which assembly with wire rope. It features 3-stage planetary gear system for fast line speed, and gear ratio at 156: 1. The Tungsten4x4 electric winch is equipped with series wound motor or permanent magnetic motor with free spooling clutch and automatic braking locks drum to prevent free spooling.

Specifications
Rated line pull: 4000 lbs
Permanent magnetic motor: 1.9 HP/1.4 KW, DC 12V
Wire rope: 6/25″ x 32.8′
Gear Ratio: 156 : 1
Drum size: 1.97″ x 3″
Bolt pattern: 4.88 x 3″
Dimensions: 13.15″x4.49″ x 4.72″
Item Weight: 19 lbs

Application Occasions
The Tungsten4x4 electric winch is designed to work for the larger ATV, UTV, car, boat, trucks, jeeps, modified vehicles and multi purpose utility trailers.It also works well for Tractors, Forestry, Police and Fire department.
And this compact winch has a higher level of ability for those who require the extra power for tougher jobs.

Winch Packing List
1 x Winch Assembly with Steel Wire Rope;

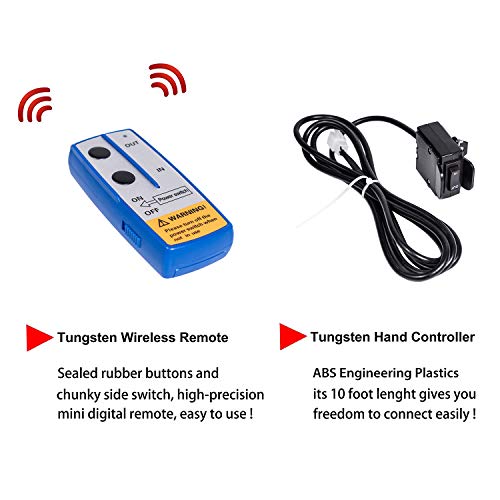

1 x Wireless Remote Control;
1 x Handlebar Control;

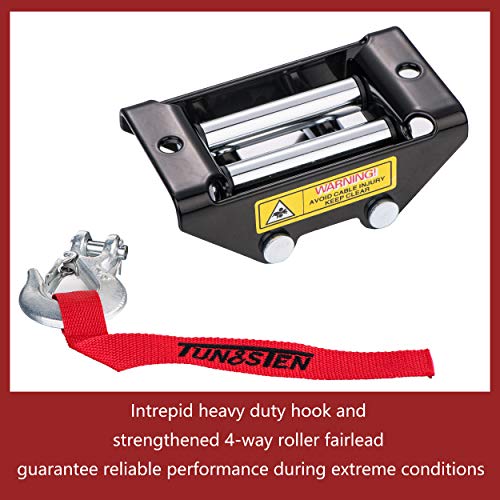

1 x 4-Way Roller Fairlead;
1 x Mouhting Plate;

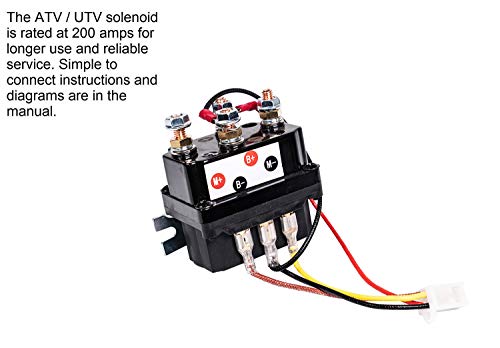

1 x Contactor;
1 x Bolts Bag;

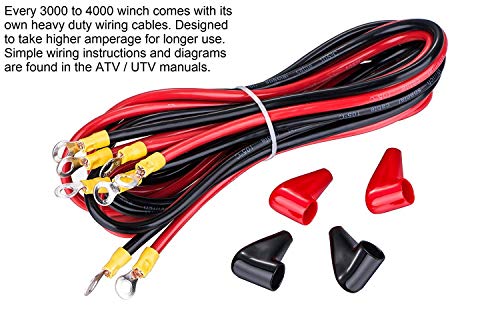

1 x Wire Harness;
1 x Strap;
1 x Clevis Hook;
1 x Manual

Make sure this fitsby entering your model number.
Features a powerful 1.9hp permanent magnetic motor with free spooling clutch
Completely waterproof, 4000 lbs rated capacity line pull for smooth and efficient operation

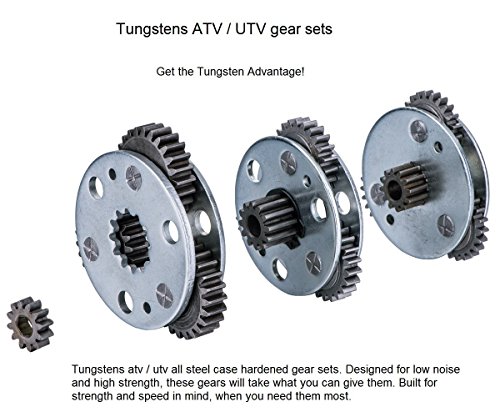

3-Stage planetary gear system, wire rope with 4-way roller fairlead
Mechanical and dynamic brake for control while winching, including the detailed manual instruction
3 YEAR WARRANTY, Special designed for ATV, UTV, car, boat, trucks, jeeps, modified vehicles and multi purpose utility trailers
